簡介：BJ公司最近將他的TeleCoil 井下通信系統投入商業應用，旨在提升任何
連續油管作業的效率。該系統可以實時捕捉
井下作業數據，并已成功獲取精確深度、溫度以及壓力信息，為北海地區的數個作業方提供技術信息服務。該系統可以在
連續油管作業期間，利用井下工具串采集和傳輸信息。采集信息可用于
射孔、設橋塞、確定流體位置等工序上。
Promising heightened efficiency of virtually any coiled tubing (CT) operation, BJ Services recently commercialized its TeleCoil downhole communication system. The system, which captures downhole operating data in real time, has already successfully gathered accurate depth, temperature, and pressure information for several operators in the North Sea.
The patent-pending system incorporates an instrumentation package in a customized bottomhole assembly (BHA) that captures and transmits information during the CT operation. This information is used to optimize the job, and verify depth measurements for activities including perforating, setting plugs, and certain fluid-placement applications.

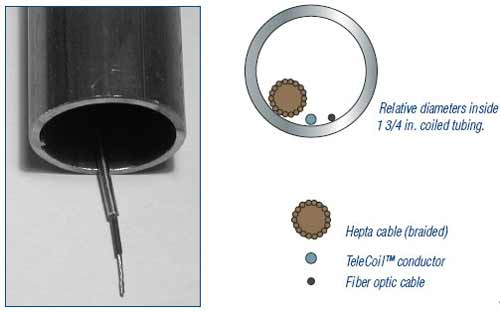

Close up of TeleCoil conductor in 1 3/4-in. coiled tubing and comparative size vs. hepta and fiber-optic cables.
The TeleCoil system conductor is preinstalled inside the CT and is impervious to aggressive fluids such as acids, cement slurries, and sand-laden fluids used for abrasive perforating. A protective jacket provides superior strength to withstand dynamic tension and compression forces encountered during spooling and pumping operations. Additionally, the small-diameter conductor has negligible impact on pumping pressures or the overall weight of the reel.
At surface, the conductor connects to a data-acquisition system that processes and charts downhole measurements. The TeleCoil technology package attaches to the BHA with a standard-end connector and uses electric quick connectors, which require only a few minutes of setup time in the field. The system supports the use of commonly available logging suites and standard ball-activated tools.
BJ states that some of the applications that can benefit from TeleCoil include milling and cleanout operations; logging; mechanical intervention; and perforating, stimulation, and gas lifting.
One of the first applications of the TeleCoil system was a perforating operation on behalf of Talisman Energy (UK) in the North Sea, which was performed at depths up to 18,000 ft (5486 m). The operation presented some challenges related to temperature and mechanical issues, but BJ states that these were addressed by carrying out system refinements and upgrades to prevent them from reoccurring. As a result, the TeleCoil system provided real-time depth, pressure, and temperature data, making it possible for BJ to achieve accurate depth correlation throughout the operation.
"We are extremely pleased with the performance of our TeleCoil system in the harsh North Sea environment," said John Anderson, region vice president for Europe and West Africa, BJ Services. "The conditions, including bottomhole temperatures of more than 300°F [149°C], provided valuable experience."
In addition to the Talisman project, BJ Services recently used TeleCoil technology in a successful CT-conveyed perforating operation in Liverpool Bay, England. Variations and geographic expansion of the system are under way.
More information can be found at www.bjservices.com or by contacting Wendy Gray at
